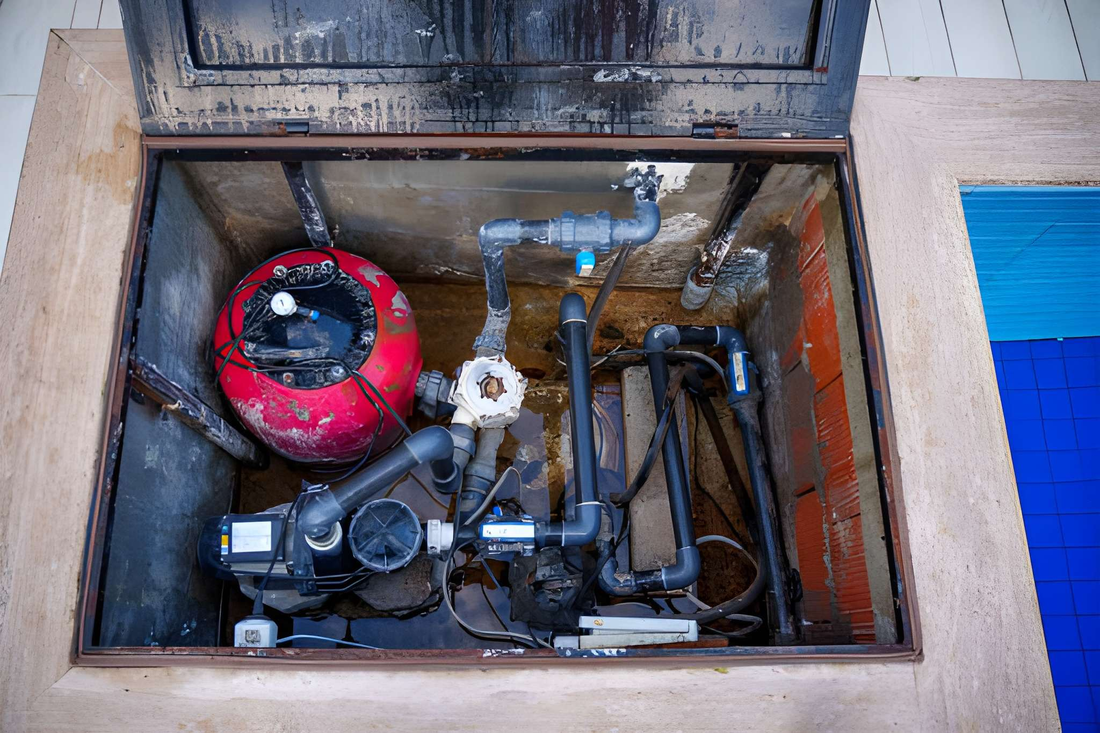

How to Replace a Pool Pump Seal Step-by-Step (DIY Guide)

A leaking pool pump is one of the most common maintenance issues pool owners face. The good news? Most leaks originate from a worn or damaged pump seal, and replacing it is a manageable task you can do yourself with the right guidance and tools.

The pool pump seal serves as a protective barrier between the motor and the water. When it fails, water can seep into the motor housing, causing corrosion, overheating, or electrical issues. Replacing the seal promptly prevents costly repairs and keeps your pump running efficiently.

In this detailed guide, NW Pool Supply walks you through the entire pool pump seal replacement process — from identifying leaks and choosing the right swimming pool pump parts to installing the new seal properly and testing your system afterward.

Understanding the Pool Pump Seal and Its Role

The mechanical seal in your pool pump is a small but essential component. It prevents water from leaking along the motor shaft where the impeller spins.

Typically made of two parts — a ceramic seat and a carbon ring — the seal is compressed by a spring to maintain a tight barrier. Over time, heat, vibration, and chemical exposure can cause wear, leading to leaks around the motor or housing.

Why Seal Replacement Matters

A worn or cracked seal may seem minor, but ignoring it can result in:

·         Motor failure from water exposure

·         Increased electricity usage

·         Rust and corrosion inside the pump housing

·         Expensive replacements instead of minor leak repair

Regular pump maintenance and timely seal replacement can extend your pump’s lifespan and maintain peak performance.

Signs You Need a Pool Pump Seal Replacement

Before you begin disassembly, it’s essential to confirm that the seal is the actual cause of the leak. Here are common signs to look for:

If you notice these symptoms, it’s likely time to perform a seal replacement.

Tools and Materials Required

Before starting the repair, gather the essential tools required for the job. Having everything ready will make the process smoother.

Tools:

·         Screwdrivers (Phillips and flathead)

·         Adjustable wrench or socket set

·         Rubber mallet

·         Clean cloth or rag

·         Lubricant (silicone-based only)

·         Seal puller or small pry tool

Materials:

·         Replacement mechanical seal

·         New O-rings or gaskets (recommended)

·         Mild detergent or cleaning solution

·         Teflon tape (if needed)

Tip: Purchase a seal kit compatible with your pump model. You can find a variety of swimming pool pump parts and seal kits at NW Pool Supply.

Step-by-Step Guide to Replacing a Pool Pump Seal

Follow these detailed steps to replace your pump seal safely and effectively.

Step 1: Turn Off Power and Drain the Pump

Always begin by disconnecting the pump from the power source to avoid electrical hazards.

 Then, close all valves leading to and from the pump and drain any remaining water using the drain plug at the base.

Step 2: Disassemble the Pump Housing

Use your screwdriver or wrench to remove the bolts securing the pump housing. Carefully separate the housing from the motor section.

Place screws in a container to avoid losing them during reassembly.

Step 3: Remove the Impeller

Hold the motor shaft in place using a wrench or screwdriver (depending on the model). Unscrew the impeller by turning it counterclockwise.

This step exposes the seal plate and the old mechanical seal behind it.

Step 4: Remove the Old Seal

Carefully pull out the old seal components — the ceramic seat and the spring-loaded carbon ring.

 Avoid scratching the surfaces inside the seal plate, as this may cause future leaks.

If any residue or corrosion remains, clean it using a mild detergent and a soft cloth.

Step 5: Install the New Seal

Now it’s time to install the new mechanical seal.

1.      Insert the ceramic seat into the seal plate with the smooth, shiny side facing outward.

2.      Press the carbon ring (attached to the spring) onto the impeller shaft gently.

3.      Use only silicone lubricant if necessary — never petroleum-based grease, as it can damage rubber components.

Ensure both pieces sit evenly and securely to prevent future leaks.

Step 6: Reassemble the Pump

Reattach the impeller by tightening it onto the shaft. Then, position the housing cover and bolt it back into place.

Before final tightening, check that all O-rings and gaskets are aligned and undamaged. Replace them if worn.

Step 7: Refill and Test the Pump

Reconnect the power and reopen all valves. Fill the pump with water before starting to ensure proper priming.

Once running, inspect for leaks around the housing and motor area. A properly installed seal should result in no visible water seepage.

If leaks persist, revisit the alignment or check for cracks in the housing that may require separate leak repair.

Common Troubleshooting Tips

Sometimes leaks continue even after seal replacement. Here’s how to troubleshoot common issues:

Following proper pump maintenance procedures minimizes these problems and keeps your system efficient.

Preventing Future Leaks

Prevention is the best form of pump maintenance. Here are key practices to avoid frequent seal replacements:

1.      Maintain Proper Water Chemistry: Excess chlorine or acidic water accelerates seal wear.

2.      Run the Pump at Optimal Times: Avoid unnecessary long cycles that cause heat buildup.

3.      Inspect for Early Signs of Wear: Regularly check for minor drips or moisture.

4.      Keep the Area Dry: Water accumulation can lead to corrosion around the motor base.

5.      Replace O-Rings Periodically: A small investment that prevents major leak repair needs later.

By incorporating these habits, you can extend your seal life and reduce overall maintenance costs.

Cost Comparison: DIY vs. Professional Repair

DIY replacement can save you significant money, especially if you already have the necessary tools and confidence. However, if you’re uncertain, it’s wise to seek a technician to prevent further damage.

Why Use Quality Pool Pump Parts

Using high-quality swimming pool pump parts ensures reliability and longevity. Generic or low-grade seals may fit initially but often degrade faster under chemical exposure and heat.

NW Pool Supply provides dependable components sourced from trusted brands, helping homeowners and pool professionals maintain efficiency without unnecessary replacements. Always match the part number and specifications of your existing pump model for best results.

Safety Precautions

When performing any repair involving electrical equipment:

·         Always disconnect the power source.

·         Ensure your hands and tools are dry before working.

·         Avoid overtightening bolts to prevent cracking the housing.

·         Follow the manufacturer’s guidelines for torque and assembly.

Safety first ensures a successful repair without injury or damage.

Final Thoughts

Replacing a pool pump seal might seem challenging, but with the right tools and understanding, it’s a straightforward process that can save both time and money.

By following this guide and using high-quality swimming pool pump parts, you can fix leaks efficiently, extend your pump’s lifespan, and maintain clear, clean pool water throughout the season.

For reliable seal kits, O-rings, and replacement components, visit NW Pool Supply — your trusted resource for durable and dependable pool maintenance solutions.
