How to Replace a Pool Pump Seal Step-by-Step (DIY Guide)

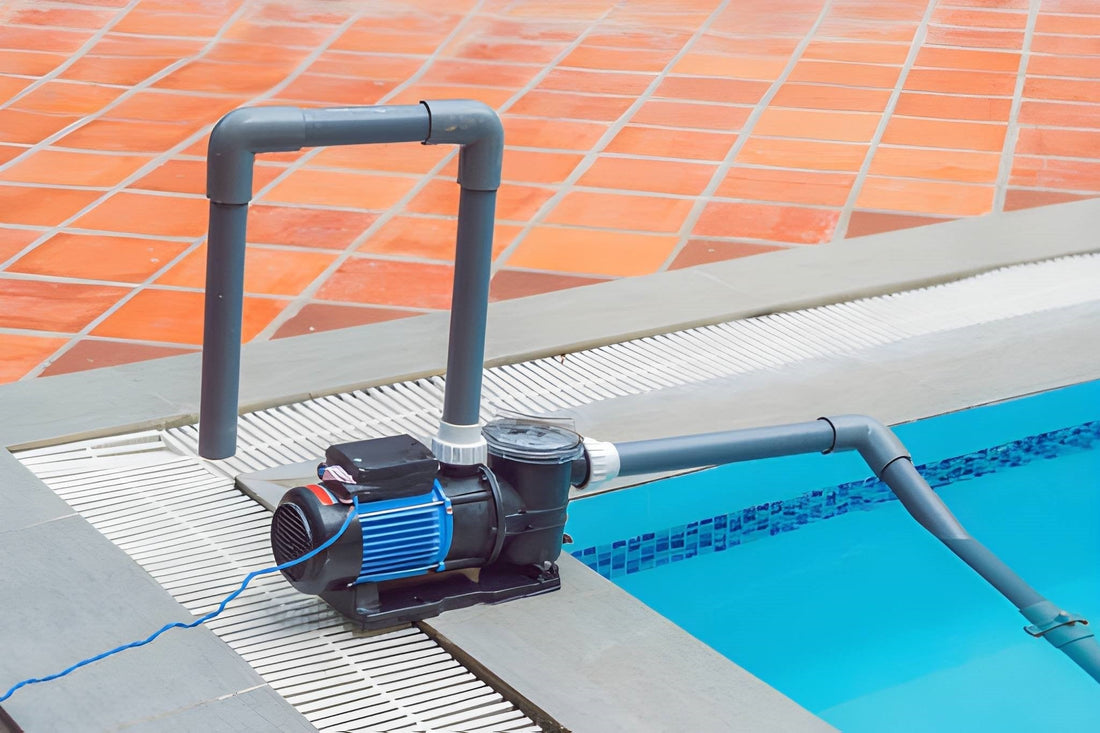

A pool pump is the heart of your swimming pool’s circulation system. It keeps water moving through the filtration system, ensuring your pool stays clean and safe. One of the most critical components of a pool pump is the mechanical seal. This small but vital part prevents water from leaking along the motor shaft. Over time, seals can be worn out, leading to leaks, reduced pump efficiency, and potential damage to your pump motor.

The good news? Replacing a pool pump parts seal is a DIY-friendly task if you follow the right steps, take necessary safety precautions, and have the right tools. In this guide, we’ll walk you through everything you need to know, from identifying a failing seal to installing a new one and troubleshooting common issues.

Understanding Your Pool Pump and Seal

What Is a Pool Pump Seal?

A pool pump seal is a mechanical component that sits between the pump housing and the motor shaft. Its primary purpose is to prevent water from leaking out of the pump while allowing the motor shaft to spin freely. Essentially, it acts as a barrier between water and electricity, keeping your pump operating safely and efficiently.

Why the Seal Is Critical to Pump Performance

A worn or damaged seal can have serious consequences:

· Water leaks can damage the motor

· Pump efficiency drops, leading to higher energy costs

· Noise or vibration may increase

· Complete pump failure can occur if leaks are ignored

Without a properly functioning seal, your pump cannot maintain consistent water flow, and small leaks can quickly turn into costly repairs.

Common Signs of a Failing Seal

You may need to replace your pool pump seal if you notice:

·    Water pooling around the pump motor

·    Squealing or grinding noises from the pump

·    Reduced water circulation in the pool

·    Overheating of the motor

Recognising these warning signs early can save you from more expensive repairs later.

Types of Pool Pump Seals

There are generally two types of pool pump seals:

1.  Mechanical seals – Most common in residential pool pumps; composed of a stationary and a rotating part.

2.  Standard or rubber seals – Simpler seals found in some older pumps.

Mechanical seals are more durable but still need replacement every few years depending on usage and maintenance.

Safety Precautions Before You Start

Before attempting any DIY repair, safety is paramount. Working on a pool pump involves electricity and water, which can be dangerous if not handled correctly.

Disconnect Power to the Pump

· Always turn off the breaker or unplug the pump before starting.

· Verify that the pump is completely powered down.

Drain Water from the Pump and Pool Lines

· Shut off the pool’s filtration system.

· Open the pump’s drain plug and remove any residual water to avoid spills.

· Keep towels handy for any remaining water in the housing.

Wear Protective Gear

· Gloves protect your hands from sharp edges and chemicals.

· Safety glasses protect your eyes from splashing water or debris.

Avoid Chemical Hazards

· Pool chemicals can irritate your skin or eyes.

· Rinse off any residue before handling the pump and avoid inhaling fumes.

Tools and Materials You Will Need

Having the right tools on hand makes the job smoother and safer. You will need:

· Basic hand tools – Screwdrivers, pliers, adjustable wrenches

· Replacement pump seal – Ensure it matches your pump model

· Lubricants – Usually silicone-based to help install the seal

· Sealant – Optional, depending on your pump design

· Towels and containers – For catching water

Check your pump’s manual to confirm the correct seal model and any manufacturer-specific instructions.

Step-by-Step Guide to Replacing a Pool Pump Seal

Step 1: Turn Off Power and Drain the Pump

· Ensure the pump is completely disconnected from electricity.

· Drain the pump housing using the drain plug.

· Remove any water remaining in the system with towels or a small container.

Step 2: Remove the Pump Housing

· Loosen screws or bolts securing the pump housing. Carefully pull the housing away from the motor; water may still be trapped, so be prepared.

· For replacement parts or guidance, you can refer to NW Pool Supply.

Step 3: Detach the Old Impeller

· The impeller sits on the motor shaft behind the pump housing.

· Loosen any screws or bolts securing it.

· Gently remove it without forcing, as damaging the impeller can cause future issues.

Step 4: Extract the Old Mechanical Seal Carefully

· The mechanical seal is mounted on the impeller or shaft.

· Use a screwdriver or seal puller if needed, but avoid scratching the metal surfaces.

· Take note of the orientation for the new seal.

Step 5: Inspect Pump Shaft and Seal Surfaces

· Look for signs of corrosion, scratches, or wear on the shaft and housing.

· Clean the surfaces with a cloth; smooth, clean surfaces are essential for proper sealing.

Step 6: Install the New Seal

· Apply a thin layer of silicone lubricant to the rubber parts.

· Position the stationary part of the seal in the pump housing.

· Slide the rotating part onto the shaft, ensuring correct orientation (usually the spring faces the impeller).

· Be gentle—forcing the seal can cause damage.

Step 7: Reassemble the Impeller and Pump Housing

·  Place the impeller back onto the motor shaft.

· Reattach any screws or bolts.

· Ensure the impeller spins freely before securing the housing.

Step 8: Reconnect Plumbing and Electrical

· Reconnect any plumbing lines that were removed.

· Make sure all seals and gaskets are seated correctly.

· Restore electrical connections after verifying that all assembly steps are complete.

Step 9: Refill Water and Test the Pump

· Refill the pump and pool lines with water.

· Turn on the pump and observe for leaks.

· Listen for unusual noises and check that water flow is restored.

Common Mistakes to Avoid

Installing the Seal Backwards

· Always confirm the correct orientation of the mechanical seal.

· A backward seal will leak immediately.

Over-Tightening the Housing

· Tighten bolts evenly, but don’t overtighten.

· Excess pressure can damage the seal or crack the housing.

Using the Wrong Seal Size

· Verify the replacement seal matches your pump model.

· Even minor size differences can prevent a proper seal.

Skipping Cleaning and Inspection Steps

· Dirt, rust, or debris on the shaft will reduce the lifespan of the new seal.

· Always inspect and clean before installation.

Maintenance Tips to Extend Pump Seal Life

Regularly Check for Leaks

· Inspect around the pump regularly, especially during peak pool season.

· Early detection prevents extensive damage.

Clean Pump Strainer and Basket

· Debris in the pump can cause imbalance, putting stress on the seal.

·  Clean weekly during heavy use.

Avoid Running the Pump Dry

· Always ensure the pump is primed and full of water before turning it on.

· Running dry can quickly destroy a seal and impeller.

Monitor Chemical Balance

· Improper water chemistry can corrode seals and metal components.

· Maintain pH and chlorine levels within recommended ranges.

Troubleshooting After Replacement

Pump Still Leaking – What to Check

· Ensure the seal was installed correctly.

·  Verify the housing bolts are evenly tightened.

· Check for scratches or damage on the shaft or housing.

Pump Making Noise

· A noisy pump could indicate a misaligned impeller or damaged seal.

· Re-check assembly before running continuously.

Reduced Water Flow or Suction Issues

· Check for clogs in the pump basket or filter.

· Confirm the impeller spins freely and isn’t obstructed.

When to Call a Professional

· Persistent leaks or unusual noises after correct installation

· Corrosion or damage to the motor or shaft

· Electrical issues or repeated seal failures

Frequently Asked Questions (FAQ)

How Often Should I Replace My Pool Pump Seal?

Typically every 2–3 years, but frequency depends on usage, water chemistry, and pump operation.

Can I Replace the Seal Myself Without Professional Help?

Yes. Most residential pumps are DIY-friendly, provided you follow safety precautions and manufacturer instructions.

What Happens If I Install the Seal Incorrectly?

Leaks will occur immediately, which can damage the motor and surrounding equipment. Correct orientation is crucial.

How Do I Know Which Replacement Seal to Buy?

Check your pump’s model number and manufacturer instructions. Most suppliers provide a cross-reference chart.

Can a Leaking Pump Seal Damage the Pool Pump?

Absolutely. Water leaking into the motor can cause electrical failure, corrosion, and even complete pump burnout.

Is It Safe to Run the Pump While Replacing the Seal?

No. Always disconnect power and drain water before attempting any repairs.

How Do I Prevent Future Leaks After Replacing the Seal?

· Ensure proper installation and lubrication

· Regularly inspect and maintain the pump

· Avoid running dry and maintain water chemistry

Final Thoughts on DIY Pool Pump Seal Replacement

Replacing a pool pump seal may seem intimidating, but with careful preparation, the right tools, and step-by-step guidance, it’s a manageable DIY task.

Regular maintenance of your pump and seal ensures:

· Optimal water flow

· Reduced risk of leaks

· Longer pump lifespan

· Lower repair costs

By following this guide, you can confidently replace your pool pump seal, keep your pool running efficiently, and enjoy a safe swimming environment.
