Hayward 525 SqFt SwimClear Cartridge Filter | W3C5030

Hayward 525 SqFt SwimClear Cartridge Filter | W3C5030

Regular price $1,859.99 USD
Regular price $2,159.99 USD Sale price $1,859.99 USD
Sale Sold out

Utilizing a cluster of reusable cartridge elements, SwimClear filters offer heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.



Features



  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
  • Filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
  • Self-aligned tank top and bottom make access to servicing the Quad-Cluster cartridge elements fast and simple
  • Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections.
  • Top manifold configuration provides excellent filtration and hydraulic performance.
  • Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to bypass into pool or spa during operation.

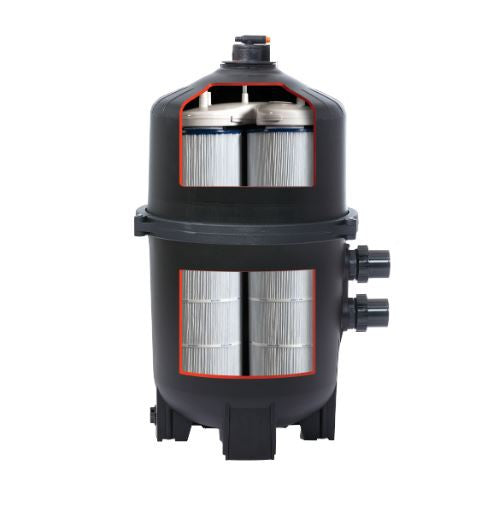

  • Quad-Cluster of high-quality polyester cartridge elements provide 325, 425 or 525 square feet of filter area for extra dirt-holding capacity and long filter cycles.
  • 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance.
  • PVC union coupling connection accepts 2" or 2-1/2" piping for plumbing versatility and hydraulic efficiency.
  • Full size 1-1/2" integral drain allows for fast 100% clean-out and easier flushing of tank.

Specifications:

Filtration Area: 525 Square Feet

Width: 24"

Height: 46.5"

Clearance needed for head removal: 22"

Footprint needed 26"x26"

Flow Rate: 150 GPM

Weight: 92 lbs
