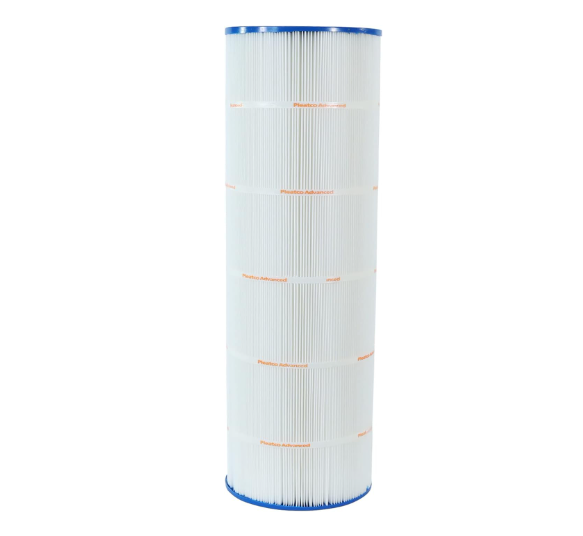

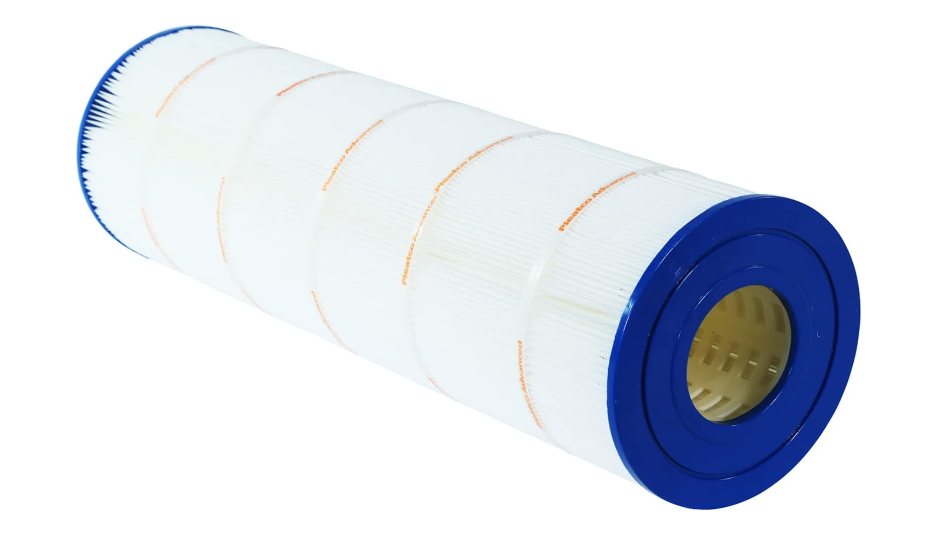

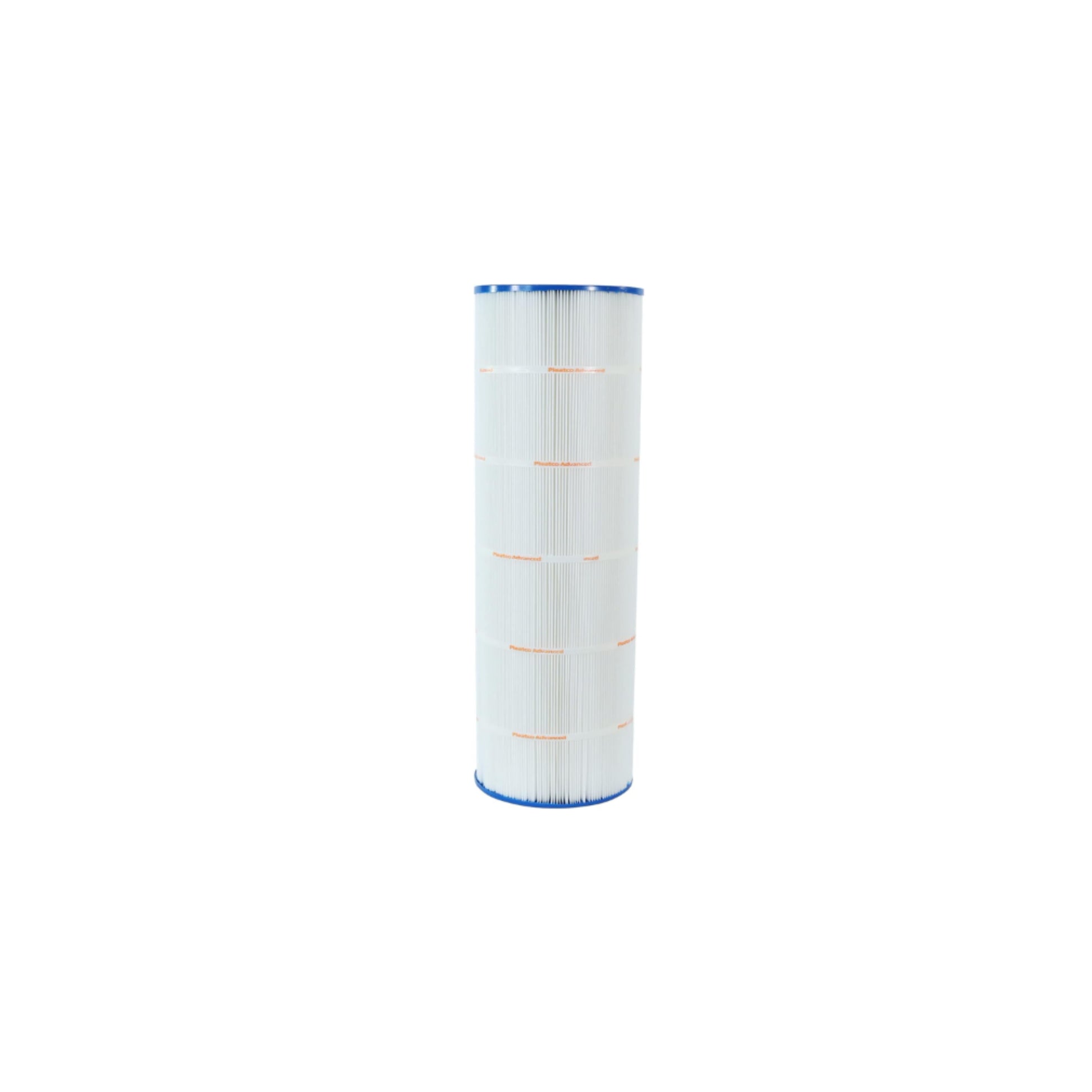

Replacement Filter Cartridge StarClear Plus C1750 | PA175-EC

The PA175-EC is the replacement cartridge for the Hayward Star-Clear Plus C1750, C1900, Sta-Rite PXC-175, Waterway Proclean 175, 200.

Replaces: 817-0175N , 25230-0175S , 27501 , 46193 , 4902-112 , 817-0175P , AK-7011 , C-8417 , CX1750RE , FC-1294 , FC-3459 , PA175-M , PCCF-175.

Dimensions:

Diameter: 8-15/16"

Length: 28-3/16"

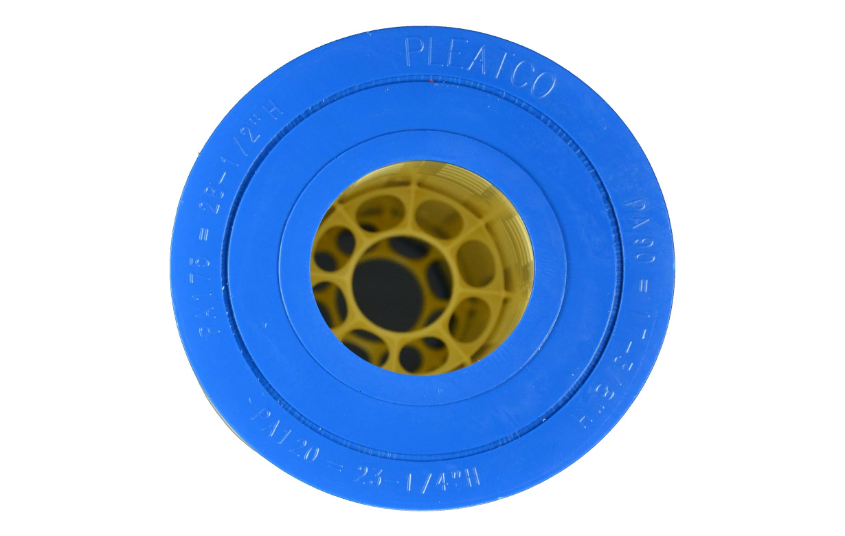

Top: 4" Open

Bottom:  4"  Open

Features:

• Pleatco Free Flow Cores

Engineered ABS for great flow. Pleatco’s unique Free Flow Cores MAXIMIZE filtration performance of the entire cartridge by delivering optimized water flow to a large surface area of the filtration fabric to capture dirt particles. Pleatco Cores are highly engineered, incredibly strong molded ABS.

• Reinforced Center Cores

Our meticulously engineered center cores allow for increased dirt loading and high pressures while providing ultra-solid protection for the structural integrity of the cartridge.

• Super-bond Bands

Pleatco break-resistant super-bond bands are sealed tight to the filtration fabric with an incredibly strong unique bonding process keeping the pleats sharp and separated for good flow and performance.

• Pleatco Advanced Filtration Fabrics

High fiber count - Engineered for high dirt holding capacity. Pleatco Advanced Filtration Fabrics are a uniformly point bonded media with HIGH FIBER COUNT and reduced pore size distribution offers rapid cleaning and dirt holding capacity, delivering low pressures and high flow rates forexcellent cleaning results.

• Strong End Caps

Pleatco end-caps are break resistant, with ergonomic handles and easily identifiable part numbers
