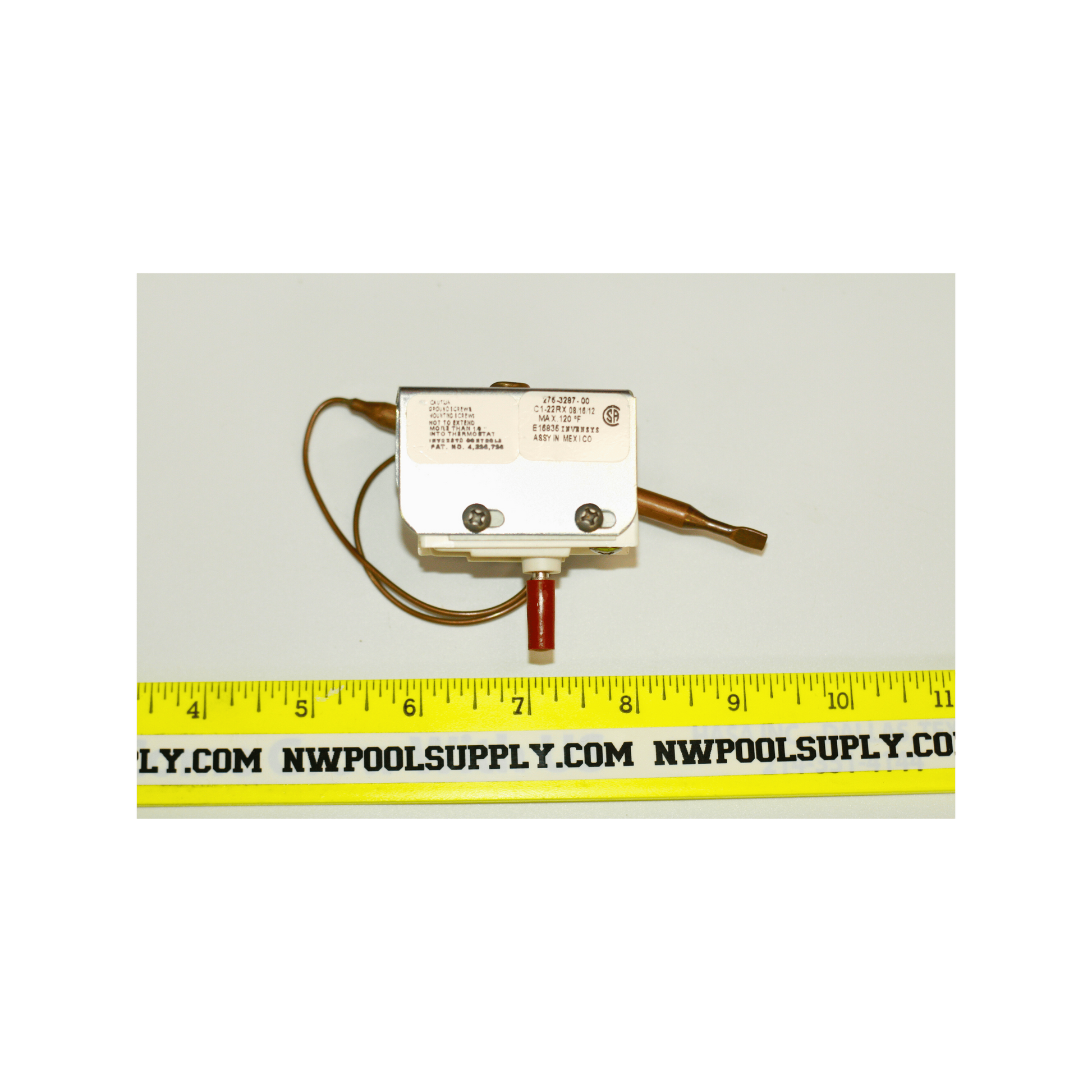

Spa Hi Limit 1/4" Diameter , 36" Long Capillary | 275-3288-00

Hi Limit 275-3288-00
Single pole single throw rated at 25 amps with temperature rating set at 121°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater
36" capillary length, 1/4" bulb thickness with 4" length
This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one

Additional Part Numbers Imprinted: E16835
